Yohkoh observations of superhot flares

Science Nugget: November 26, 1999


For many years we have known that hot (10-20 MK) plasma is created in the corona at the time of a flare, which is indicated, for example, by a sudden increase seen by the X-ray detectors aboard the NOAA GOES weather satellites. But in the early 1980s, spectroscopic measurements revealed that hotter (>30 MK) plasma also exists in certain flares (see the two pioneering papers [1] and [2] .) We call it the ``superhot'' plasma. What is the deal? Is the superhot plasma just the high-temperature end of the 10-20 MK (MK = million degrees Kelvin) plasma, or does it have a different nature?

Scientists who are experts on solar flares believe that most of the 10-20 MK plasma must originate from the chromosphere, which is heated from above. But the origin of the superhot plasma is still unknown. Some speculate that it is a signature of heating of the material already present in the corona. More importantly, some reconnection models of solar flares predict the superhot plasma above the soft X-ray loop, which is filled with the 10-20 MK plasma (e.g., [3] , [4] .)

SXT images of a typical flare do not show such high temperatures as 30 MK. This is understood in terms of the presence of cooler plasma in the line of sight coupled with the broad temperature sensitivity of SXT (c.f., [5] .) But the low-energy channels of the Yohkoh Hard X-ray Telescope (HXT) are quite sensitive to the superhot temperature range. They are the L-band (14-23 keV) and the M1-band (23-33 keV).

I have looked at 36 flares that are known to be generally hot in terms of spatially unresolved soft X-ray measurements. For each flare, HXT and SXT images are coaligned that were taken during the impulsive phase, and two times in the decay phase. I also measured the motion of the brightest area in soft X-ray images. Higher-energy hard X-ray images are also indicated wherever available. The M2-band is in 33-53 keV. See the following figure for the format.

Format of figures

The findings are summarized as:
  1. Only five flares show that the superhot plasma is cospatial (within the uncertainty of coalignment) with the most intense part (i.e., loop top) of soft X-ray emission.

    Flare on 17 February 1992

  2. Other events show that the superhot plasma is displaced from the soft X-ray loop top source. In nine of them, the hard X-ray source seems to be higher in altitude (not dependent on the loop geometry). The following figure is an eruptive flare analyzed in [6] .)

    Flare on 5 October 1992

  3. Six events show that the superhot plasma is located in a separate structure from the main flare loop.

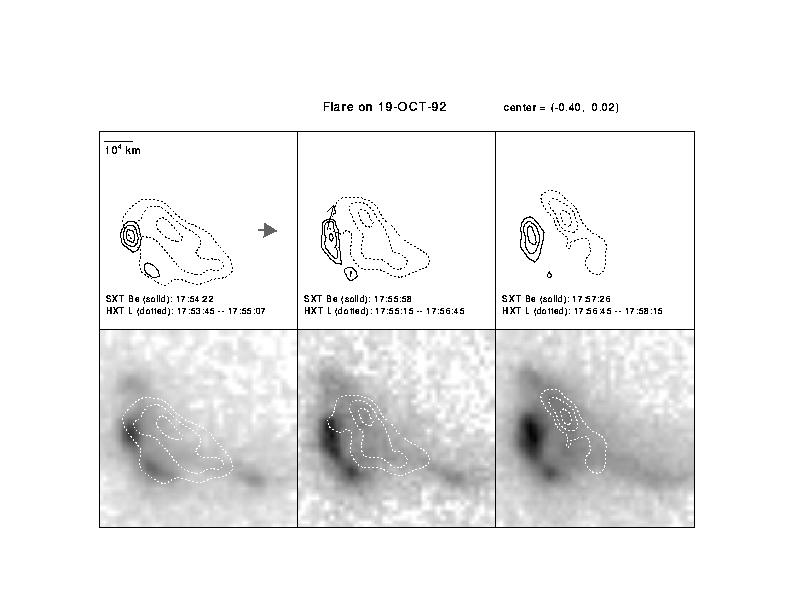

    Flare on 19 October 1992

  4. Other flares are more or less complicated. Hard X-ray images could not be synthesized in some of them, presumably because the source was too big. But it seems that the soft X-ray source generally moves in the direction of the displacement of the hard X-ray source.

The results are consistent with the presence of the superhot plasma outside the dense flare loop. The flares that show the superhot plasma cospatial with the bright soft X-ray source has the loop geometry in which both are included in the same line of sight. It is difficult to see the superhot plasma with HXT in the early phase of a flare, because other parts (notably the footpoints) are already bright, and the limited dynamic range prevents us from imaging a possibly diffuse hot area outside the loop.

So far the analysis has included only those flares known to be hot on average. But the presence/absence of the superhot plasma may be a key factor for different types of geometry that lead to magnetic reconnection [7] .) If such a classification is valid, we would expect ejections (see a previous nugget) with all the flares analyzed here. That is unfortunately not the case. More results will follow shortly.

Sakao's scheme of two types of geometry

What we cannot do with the present instrumentation is spatially resolved accurate spectroscopy, making it still ambiguous whether the soft spectrum seen with HXT in these flares is thermal or nonthermal. More importantly, it is very important to observe the superhot plasma (which would be not dense) early in the flare. We hope that HESSI (to be launched in July 2000) will solve at least part of these problems.

26 November 1999 Nariaki Nitta (nitta@isass1.solar.isas.ac.jp)
